AV Credenza

AV CREDENZA range is part of Fusion audiovisual furniture catalogue. The AV credenza becomes part of usual landscape of corporate spaces, fitting perfectly into the room thanks to its functionality and pleasing aesthetics.

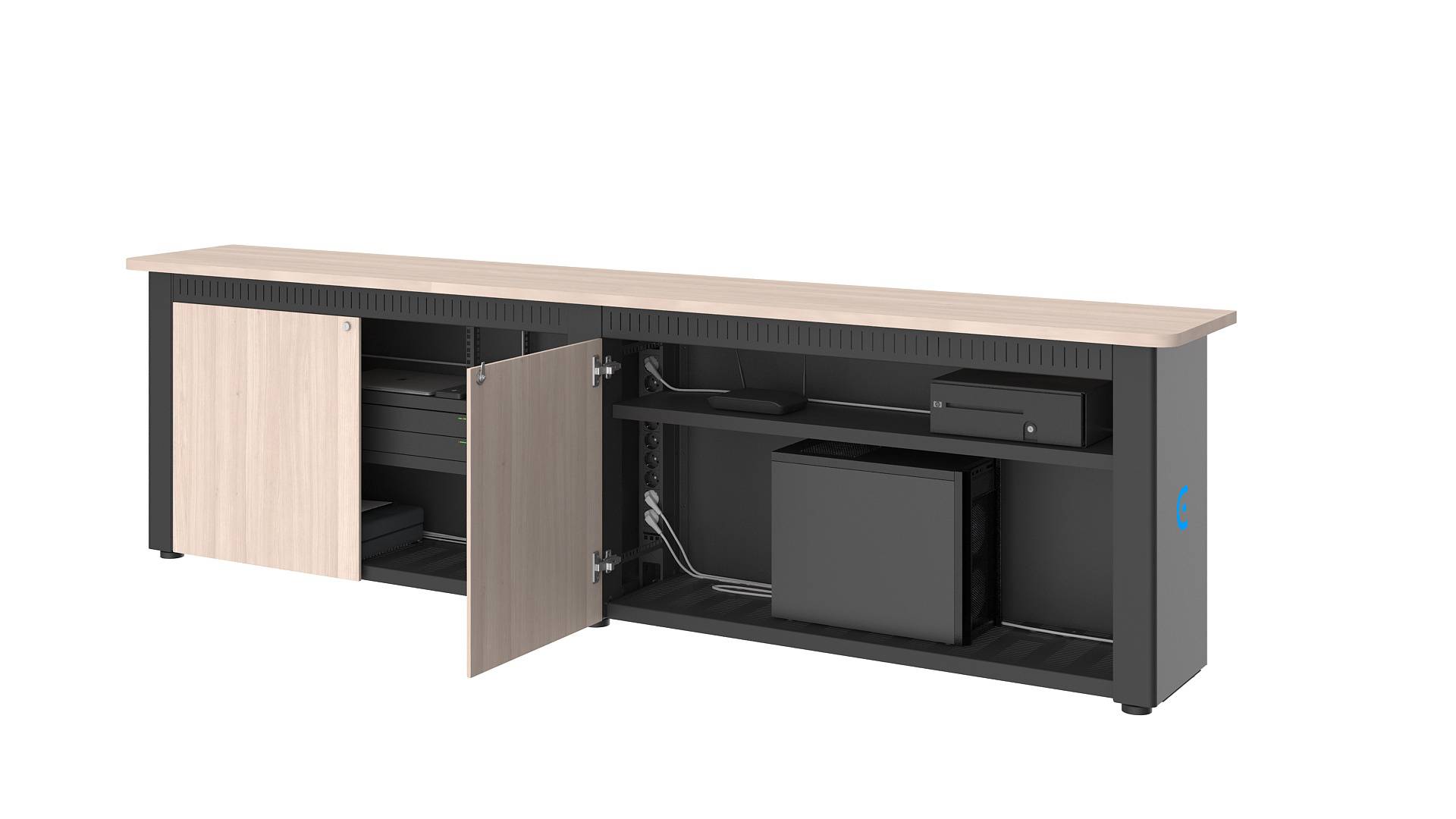

It is a modular solution built in standard metal structure bays. Its modularity allows to adapt its initial design by adding extra modules aside the existing ones. Inner space allows the storage of all types equipment devices in 19” rack format - from computers to videowall controllers, office material, wiring, equipment shelfes, among others.
AV Credenza is a self-supporting solution which avoids any type of construction work or screwing prior to installation at site. Likewise, the top section of front profile has ventilation slots to allow heat dissipation of the inner equipment.
Besides functional features, the available set of finishes grants an attractive and modern aesthetic look. Indeed, the AV Credenza allows to integrate your own custom logo in backlit LED light on the side panels boosting your corporate image. Eventually, our complete range of Credenzas match with the rest of our catalogue allowing for an homogeneous and modern finish of each room & space.
Technical
Credenza cabinets from the FUSION range fit perfectly into the landscape of current hybrid workplaces. The presence of technology and equipment required in the operation of the rooms is an essential element of these environments and the AV Credenza answers the needs of these scenarios.

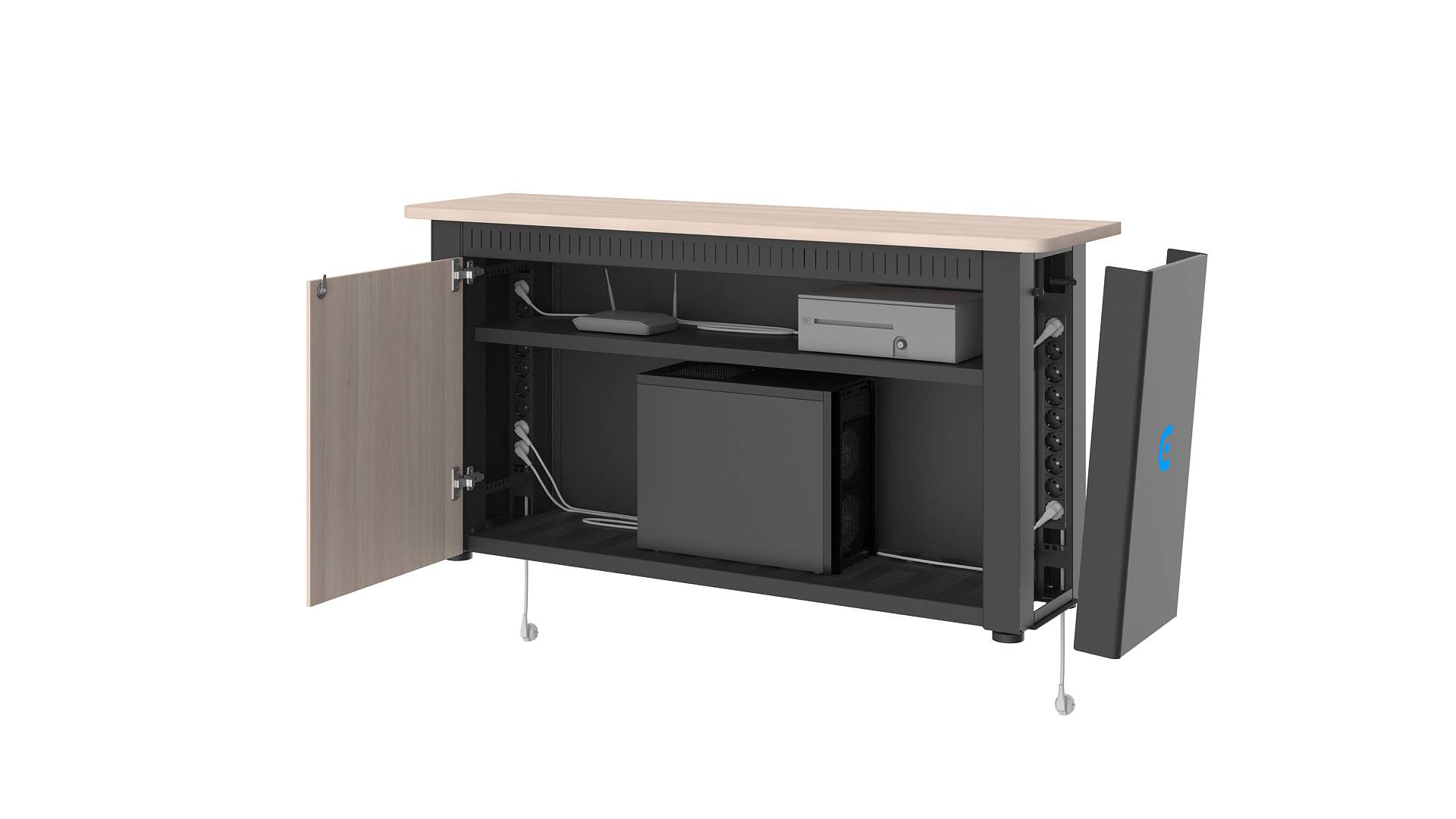

Dedicated storage area - in 19'' format. AV Credenza grants a large technical space aimed at the storage of equipment devices needed in the room exploitation, suitable for all size devices and available in standard 19” horizontal and vertical format. From large format computers to equipment trays, PDUs, switchers, video wall controllers, and many more.
Private cable mangement. AV range also responds usual needs of hybrid workplaces, as the case of cable management. The structure has entry points at ground level in several locations while the cabinet ensures cable routing towards the connection points in the inner part, with the possibility to separate wiring as per each source type.
Heat dissipation. It is a technical solution which responds the needs of high-density equipment environments. Among these, a front grilled ventilation to dissipate internal heat or the inclusion of folding doors allowing an easy and quick access in case of installation or maintenance.
Aesthetics in mind. In addition to its functionality, the AV cabinet also offers an attractive finish to boost company's corporate image. Among its features, the backlit side panel with the corporate logo and the different available finishes for both the structure and surface.
FINISHES
The construction materials and finishes used in the manufacture of AV Credenza cabinets are of high quality and are available in a wide selection of aesthetically pleasing finishes.
Metal structure. Credenza structure is built in metal finish by joining different parts and components. such as side panels made of 2.0mm thick metal sheet, attached to the lower tray made of 1.5mm thick steel sheet. Horizontal profiles complete furniture chassis manufactured in metal sheet too. In its standard version, the structure finish is in graphite, or alternatively in white RAL 9016 and aluminum gray RAL 9001.
HPL worktop surface. Worktop surface is made of compact phenolic laminate (HPL) in 12mm thickness covered with plastic laminate decoation in 0.8mm thickness and a density of 600kg/m3 %5. Surface edges are fixed with melted glue in ABS finish and 2mm bevel around the piece. In addition, edges will have a rounded finish, thus minimising human factor risks.
Both front and rear doors are available in different materials. As standard, these are also available in HPL material in 10mm thickness. Alternatively, these are available in MDF finish in 12mm thickness, as well as in sound-absorbing PET material with acoustic properties.
Standard worktop and door finishes are available in white, light gray, maple, light oak and dark oak.
Alternatively, FUSION worktop surface is available in melamine based on wood particles (MDF), glued with synthetic resins, 25mm thick with melamine coating. Average density of 650kg/m3. 2mm thickness ABS edges, applied with polyurethane glue and all edges rounded to R=2mm. Joint with structure is done using M6 metal axes and eccentrics.
Structure Finishes - Metallic

Graphite Ref. G
Standard Color

White Ref. y
Optional/UNDER REQUEST

Aluminum Ref. A
Optional/UNDER REQUEST
Surface Finishes - Melamine (HPL as option/under request)

White Ref. Y

Anthracite Ref. G

Light Grey Ref. V

Natural Oak Ref. T

Dark Oak Ref. R

Nebraska Oak Ref. K

Maple Ref. H
